    Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A Flange Mounted Differential Pressure Transmitter

    Ask Lasest Price
    Brand Name : Yokogawa
    Model Number : EJX210A-JHS5G-919EN-EA13B1WE03-A
    Certification : COO & COC
    Price : $999-1099
    Payment Terms : T/T,Alipay,Paypal
    Supply Ability : 99+
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A Flange Mounted Differential Pressure Transmitter

    Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A Flange Mounted Differential Pressure Transmitter


    Product Overview
    The Yokogawa EJX210A-JHS5G-919EN-EA13B1WE03-A is a high-performance flange-mounted differential-pressure level transmitter engineered for accurate, reliable measurement in tanks, distillation columns, and reactor vessels. Featuring a 3" ANSI 150# raised-face flange and Hastelloy C-276 diaphragm, it withstands corrosive media and high static pressures while delivering ±0.075 % span accuracy. The 4–20 mA HART protocol enables remote configuration, diagnostics, and integration with DCS, PLC, or asset-management systems.
    Key Features & Benefits
    • 0–2,000 kPa (H-span) calibrated range – ideal for tall vessels & high-density liquids
    • ±0.075 % span accuracy – ±0.1 % total performance including temperature effects
    • Hastelloy C-276 diaphragm & 316 SST flange – superior corrosion resistance
    • 3" ANSI 150# RF flange – direct drop-in for legacy displacer transmitters
    • 4–20 mA HART 5/7 – remote trim, diagnostics, and multi-drop operation
    • SIL 2 certified (IEC 61508) – meets safety loop requirements without external solvers
    • 0.1 second response time (adjustable) – fast level control in batch reactors
    • –40 °C to +120 °C process temperature – handles cold storage and hot process fluids
    • Integral LCD indicator option – local read-out without opening cover
    • ATEX, IECEx, FM, CSA hazardous-area approvals – global installation flexibility
    Typical Applications
    • Chemical reactor level control
    • Crude-oil separator vessels
    • Cryogenic LNG storage tanks
    • Pharmaceutical buffer tank inventory
    Technical Specifications
    Measurement Principle: Differential pressure, flange-mounted
    Calibrated Span: 0–2,000 kPa (0–290 psi) H-span
    Accuracy: ±0.075 % span (reference)
    Wetted Materials: Hastelloy C-276 diaphragm, 316L SST flange
    Flange Rating: 3" ANSI 150# RF
    Process Connection: 1/4–18 NPT side vent/drain
    Output: 4–20 mA, HART 5/7
    Power Supply: 12–42 V DC (loop-powered)
    Ambient Temperature: –40 °C to +85 °C
    Process Temperature: –40 °C to +120 °C
    Enclosure Rating: IP66 / NEMA 4X
    Approvals: CE, UL, ATEX Ex d, IECEx, FM, SIL 2/3

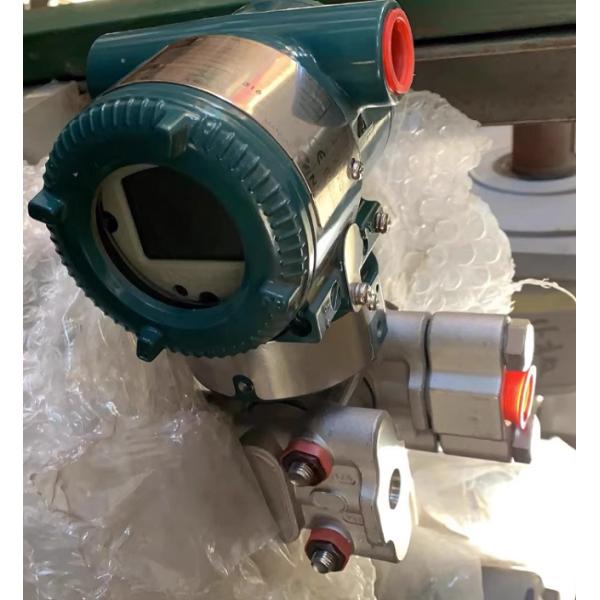

    Product Images
