    Yokogawa EJX210A-EMS4G-919EN-WA13B1SW00-B/KU21/TX Flange Mounted Differential Pressure Level Transmitter

    Ask Lasest Price
    Brand Name : Yokogawa
    Model Number : EJX210A-EMS4G-919EN-WA13B1SW00-B/KU21/TX
    Certification : COO & COC
    Price : $999-1099
    Payment Terms : T/T,Alipay,Paypal
    Supply Ability : 99+
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Yokogawa EJX210A-EMS4G-919EN-WA13B1SW00-B/KU21/TX Flange Mounted Differential Pressure Level Transmitter

    Yokogawa EJX210A-EMS4G-919EN-WA13B1SW00-B/KU21/TX Flange Mounted Differential Pressure Level Transmitter


    Product Overview
    The Yokogawa EJX210A-EMS4G-919EN-WA13B1SW00-B/KU21/TX is a member of Yokogawa's flagship EJX-A series. It utilizes a single-crystal silicon resonant DPharp sensor and can be directly mounted on a tank flange for continuous measurement of liquid level, density, or interface. This model is factory-prepared for a specific range and material combination (EMS4G diaphragm / 919EN process connection / WA13B1SW00 housing and electrical interface / B coating / KU21 bracket / TX additional certification), making it ready for immediate use. It is widely suitable for demanding applications in the petroleum, chemical, pharmaceutical, power generation, and offshore platforms.
    Key Advantages
    • Ultra-high accuracy: ±0.075% of upper range limit, ensuring more reliable batch control and inventory management
    • Long-term stability: ±0.1% of URL/1-year drift, significantly reducing calibration frequency
    • Ultra-fast 120 ms response time captures rapid level changes and improves process safety
    • 4–20 mA DC + HART 7 protocol, compatible with existing DCS/PLCs, supporting remote configuration and diagnostics
    • Multi-sensor diagnostics: Real-time detection of impulse line blockage, diaphragm corrosion, or abnormal temperature, providing early warning
    • Exida & TÜV SIL2/SIL3 safety certification, suitable for direct use in SIS systems
    • Local LPS parameter setting: Zero/span adjustment can be performed directly on the meter without a handheld operator
    • Modular structure, with optional BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA protocols
    Technical Specifications (Key Configurations)
    Measurement Type: Level, Density, Interface
    Range: Minimum 1 kPa, Maximum 3 MPa (Specific range to be determined by EMS4G) (Code determined)
    Process wetted materials: Hastelloy C-276 (diaphragm EMS) + 316L extension flange
    Output signal: 4–20 mA HART, two-wire
    Ingress protection: IP66/67, Type 4X
    Explosion-proof certifications: ATEX / IECEx / FM / CSA (TX code)
    Mounting bracket: KU21 stainless steel 2-in. pipe bracket
    Coating: Option B, epoxy-polyurethane corrosion-resistant coating
    Ambient temperature: –40°C to +85°C (LCD display –30°C to +80°C)
    Typical applications
    • Level measurement in reactors, crystallizers, and evaporators
    • Density monitoring for easily crystallized media such as hydrocarbons, acids, and slurries
    • High and low level alarms and interlocks for LNG and LPG tanks
    • Separator interface control on offshore platforms

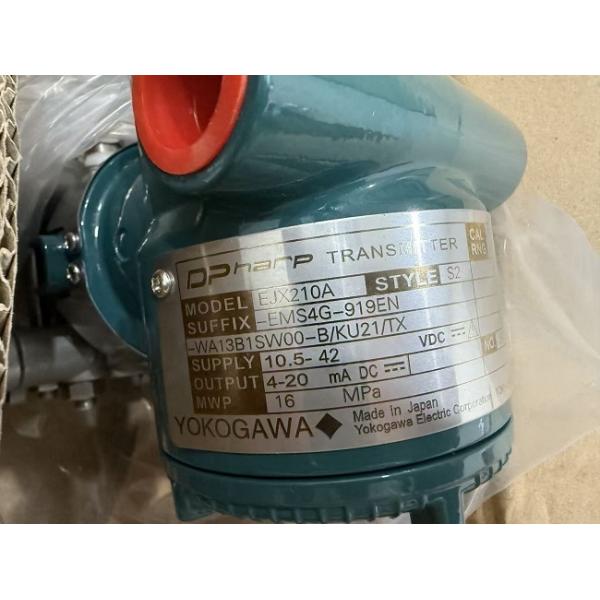

    Product Images
