    Yokogawa EJX110A-JLH4G-919EB/KU22 EJX-A Series Differential Pressure Transmitter High Accuracy

    Ask Lasest Price
    Brand Name : Yokogawa
    Model Number : EJX110A-JLH4G-919EB/KU22
    Certification : COO & COC
    Price : $999-1099
    Payment Terms : T/T,Alipay,Paypal
    Supply Ability : 99+
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Yokogawa EJX110A-JLH4G-919EB/KU22 EJX-A Series Differential Pressure Transmitter High Accuracy

    Yokogawa EJX110A-JLH4G-919EB/KU22 EJX-A Series Differential Pressure Transmitter 4-20mA


    Yokogawa EJX110A-JLH4G-919EB/KU22 Differential Pressure Transmitter | 0.04 % Accuracy, SIL2, HART 7, –40 °C to +85 °C
    Product Overview
    The Yokogawa EJX110A-JLH4G-919EB/KU22 is a high-performance differential pressure transmitter that combines the proven DPharp® resonant silicon sensor with advanced digital signal processing. Engineered for critical flow, level and pressure applications, this model delivers ±0.04 % reference accuracy, 100 ms response and 15-year stability, cutting lifetime ownership costs in oil & gas, chemical, power and pharmaceutical plants.
    Key Features & Benefits
    • Ultra-High Accuracy – ±0.04 % of span; ±0.1 % per 10-year stability minimizes calibration downtime.
    • SIL2 / SIL3 Capable – IEC 61508 certified for safety-instrumented systems; FMEDA data supplied.
    • Multi-Variable Output – Simultaneous differential pressure, static pressure and process temperature via HART 7, FOUNDATION Fieldbus or PROFIBUS-PA.
    • Advanced Diagnostics – Plugged-impulse-line detection, heat-map trending and spectral signal analysis predict failures before they happen.
    • Rugged Construction – IP66/IP67, NEMA 4X, marine-grade polyurethane coating; operates –40 °C to +85 °C (-40 °F to 185 °F).
    • Universal Mounting – ½-inch NPT, DIN 19213 or coplanar flanges; integral rotatable LCD or remote indicator option.
    Technical Specifications
    • Model: EJX110A-JLH4G-919EB/KU22
    • Span Range: 0.1 – 210 kPa (0.4 – 840 inH₂O)
    • Maximum Static Pressure: 25 MPa (3 626 psi)
    • Output Signal: 4–20 mA with HART 7 (default)
    • Wetted Materials: 316L SST & Hastelloy C-276 diaphragm
    • Process Connection: ½-14 NPT female (JLH4G) with KU22 explosion-proof cable gland
    • Electrical Entry: M20 × 1.5 or ½ NPT
    • Certifications: ATEX, IECEx, FM, CSA, NEPSI, INMETRO, EAC, SIL2/3
    Typical Applications
    • Custody-transfer natural-gas flow measurement with orifice plates
    • Level control in high-pressure separators and distillation columns
    • Filter differential pressure monitoring in power plants
    • Interface level measurement in pharmaceutical reactors

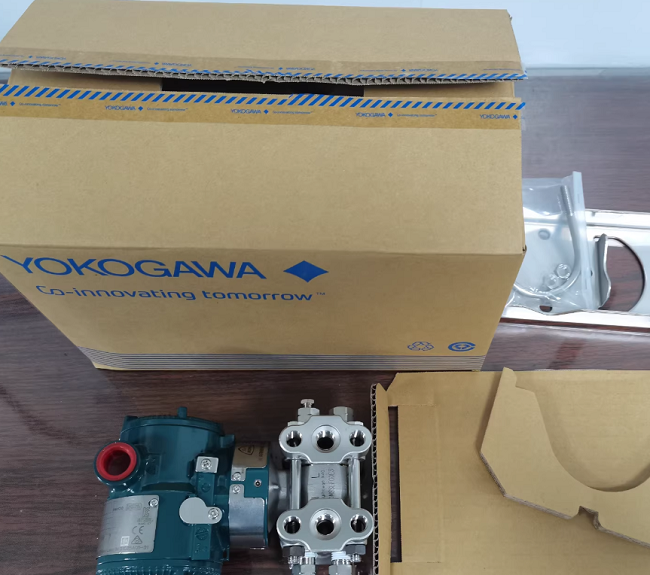

    Product Images
